Techcon TE series angled needle
Techcon TE series angled needle

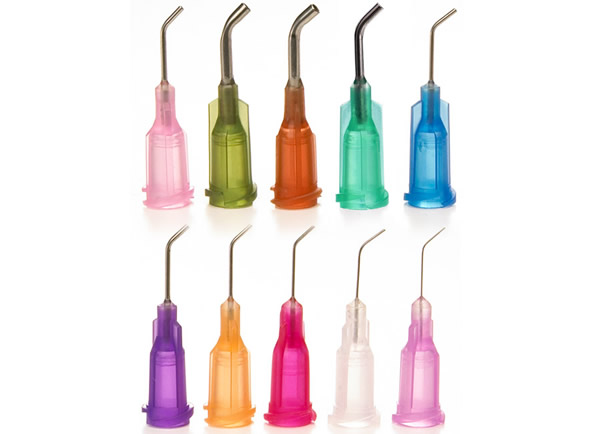

The TE series high-quality angled needle includes a high-precision angled 45 ° or 90 ° stainless steel sleeve and a dual Helix polypropylene needle holder, used to firmly connect the dispensing syringe. This high-quality needle has no burrs and comes with an electrolytic polishing tube, allowing for smooth and consistent material flow. In addition, they do not contain silicon and chloride, and have a maximum working pressure of 100 psi (6.9 bar).
DESCRIPTION
● Product Description ●
The TE series high-quality angled needle includes a high-precision angled 45 ° or 90 ° stainless steel sleeve and a dual Helix polypropylene needle holder, used to firmly connect the dispensing syringe. This high-quality needle has no burrs and comes with an electrolytic polishing tube, allowing for smooth and consistent material flow. In addition, they do not contain silicon and chloride, and have a maximum working pressure of 100 psi (6.9 bar).
50 pieces per pack:
| Specifications | ½" (12.7mm) |
1 ½" (38.1mm)
|
|
|
90°
|
45°
|
45°
|
|
| 14 | TE714050B90PK | TE714050B45PK | TE714150B45PK |
| 15 | TE715050B90PK | TE715050B45PK | |
| 18 | TE718050B90PK | TE718050B45PK | TE718150B45PK |
| 20 | TE720050B90PK | TE720050B45PK | |
| 21 | TE721050B90PK | TE721050B45PK | TE721150B45PK |
| 22 | TE722050B90PK | TE722050B45PK | |
| 23 | TE723050B90PK | TE723050B45PK | |
| 25 | TE725050B90PK | TE725050B45PK | |
| 27 | TE727050B90PK | TE727050B45PK | |
| 30 | TE730050B90PK | TE730050B45PK | |
Remove PK from bulk models and replace with -1000, such as -1000=1000 pieces
| Color codes and specifications | ||||
| number | colour | Inner diameter (inches) | Inner diameter (mm) | |
| 14 | Yellowish brown | 0.063 | 1.600 | |
| 15 | Amber color | 0.054 | 1.371 | |
| 18 | green | 0.033 | 0.838 | |
| 20 | Pink | 0.024 | 0.610 | |
| 21 | Purple; | 0.020 | 0.508 | |
| 22 | blue | 0.016 | 0.406 | |
| 23 | orange | 0.013 | 0.330 | |
| 25 | red | 0.010 | 0.254 | |
| 27 | transparent | 0.008 | 0.203 | |
| 30 | lavender | 0.006 |
0.152 |
|
