Techcon MT series conical metal needle

Techcon MT series conical metal needle


DESCRIPTION

● Product Description ●

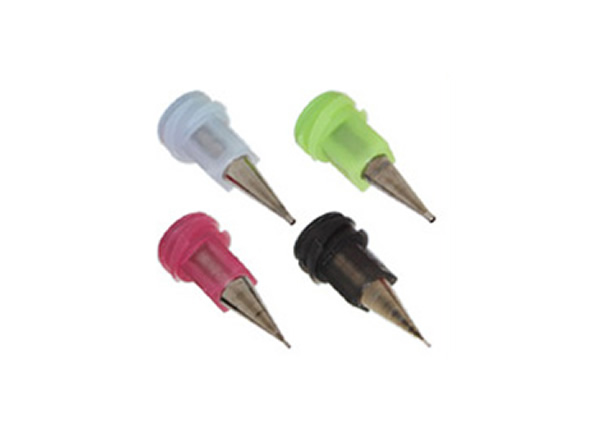

Techcon Systems MT series conical metal needle

The MT series conical needle has high precision and is suitable for high-speed dispensing; The price is cheap, one-third of the price of similar products in the market. Using this cost-effective needle can greatly save the factory's dispensing costs. The conical design not only effectively avoids adhesive blockage and greatly improves the adhesive performance, but also reduces back pressure and greatly increases the adhesive output. The thin design of the needle part improves the precision of dispensing and effectively controls the occurrence of dripping and dragging.

Product specifications:

The MT series conical needles are available in sizes ranging from 18 to 30 gauge.

PART NUMBER GAUGE COLOR DESCRIPTION ID Inch (mm) OD Inch (mm)
MT18-PBN 18 PINK Metal Tapered Tip, 18G, PB with EN Coating 0.041 (1.041) 0.049 (1.245)
MT19-PBN 19 ORANGE Metal Tapered Tip , 19G, PB with EN Coating 0.034 (0.864) 0.042 (1.067)
MT20-PBN 20 GREEN Metal Tapered Tip , 20G, PB with EN Coating 0.027 (0.686) 0.035 (0.889)
MT21-PBN 21 BLUE Metal Tapered Tip , 21G, PB with EN Coating 0.024 (0.609) 0.032 (0.813)
MT23-PBN 23 PURPLE Metal Tapered Tip , 23G, PB with EN Coating 0.022 (0.564) 0.025 (0.635)
MT25-PBN 25 WHITE Metal Tapered Tip , 25G, PB with EN Coating 0.017 (0.437) 0.020 (0.508)
MT27-PBN 27 RED Metal Tapered Tip , 27G, PB with EN Coating 0.013 (0.335) 0.016 (0.406)
MT30-PBN 30 BLACK Metal Tapered Tip , 30G, PB with EN Coating 0.009 (0.233) 0.012 (0.305)
