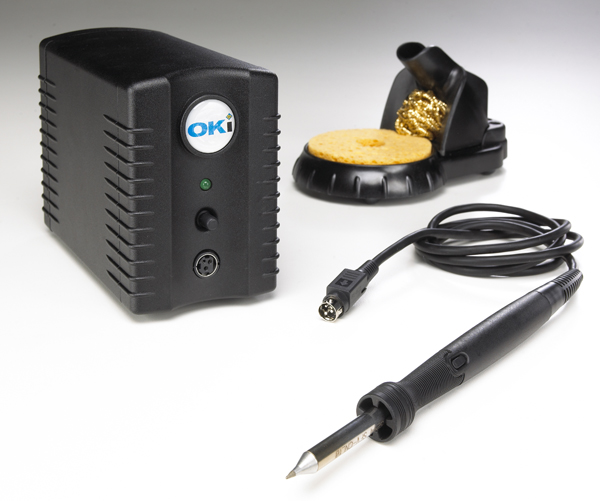

A globally unique high-tech intelligent soldering iron that ensures high-quality and efficient lead-free soldering at 350 ℃; The PS-900 intelligent soldering iron has high output power, fast heat transfer, and is suitable for various high-quality lead-free soldering needs. It adopts the famous Smart Heat technology and has the advantages of small size, fast heating, high heating power, stable soldering iron tip temperature, and automatic output power change. It is the most ideal lead-free soldering tool

PS-900 adopts PS-CA2 heating element, which is easy to install and safe to use. Compared with the company's PS-800 product, PS-900 has added the following advantages: increased output heating power, with PS-800 at 35 watts and PS-900 at 60 watts. Due to the increase in output power and high welding efficiency, it is possible to safely and quickly achieve higher welding efficiency at lower temperatures of the soldering iron tip, significantly extending the service life of the soldering iron tip and reducing the cost of consumables for users; Reduce the possibility of damaging circuit boards and chips due to excessive temperature.

Main features and advantages:

• SmartHeat temperature control;
• Ergonomic lightweight handle;
• Durable cast aluminum casing;
• Iron tip electroplating increases thickness;
• Low cost, easy to replace heating element;

Technical specifications (power host)

Technical specifications (welding handle and heating core components)

Product standard configuration:

Other optional purchases

Optional soldering iron tipsSxV series soldering iron tip

Recommended for long-distance welding applications
	SFV-CNL03ALong cone 0.3mm (. 01 ")			SFV-CH30AConical 3.0mm (. 12 ")
	SFV-CNB04ACone shaped elbow 0.4mm (. 016 ")			SFV-CH50ACone shaped 5.0mm (. 197 ")
	SFV-CN05AConical 0.5mm (. 02 ")			SFV-DRH420ARake type hoof 2.0mm (. 08 ")
	SFV-CH10AConical 1.0mm (. 04 ")			SFV-DRH430ARake type hoof 3.0mm (. 12 ")
	SFV-CH15ACone shaped 1.5mm (. 06 ")			SFV-DRK30AKnife shape 3.0mm (. 12 ")
	SFV-CH18ACone shaped 1.8mm (. 07 ")			SFV-DRK45AKnife shape 4.5mm (. 18 ")
	SFV-CH25AConical 2.5mm (. 10 ")
Suggested for use in large solder joint applications
	SFV-CH10Chisel type 30 ° 1.0mm. 04 ″)			SFV-CNL10Cone 1.0mm (. 04 ")
	SFV-CH20Chisel type 2.0mm (. 08 ")			SFV-CNL14Cone shaped 1.4mm. 056 ")
	SFV-CH25Chisel type 2.5mm (. 10 ")			SFV-DRH20Cone 2.0mm (. 08 ")
	SFV-CH50Large chisel type 5.0mm (. 20 ")			SFV-DRH20CPRake type tellurium 2.5mm (. 10 ")
	SFV-CHB15Chisel type 1.5mm (. 06 ")			SFV-DRH30CPRake type tellurium 3.6mm (. 14 ")
	SFV-CN05Cone 0.5mm (. 02 ")			SFV-DRK50Blade shape 5.0mm (. 20 ")
	SFV-CNB05Bend cone 0.5mm (. 02 ")			SFV-DRK50SBlade shape 5.0mm (. 20 ")
	SFV-CNL04Cone 0.4mm. 016 ")

Suggested for use in large solder joint applications
	CFV-BL100Blade type 10mm (. 40 ")			CFV-BL250Blade type 25mm (. 1 ")
	CFV-BL350Blade type 35mm (. 14 ")			CFV-BL400Blade type 40mm (. 16 ")
	CFV-BL500Blade type 50mm (. 2 ")

remarks:F=FR4/fiberglass, used for standard applications;

You can also provide two other series, just add themFreplace withTorCJust enough;

T=Temperature sensitive,C=Ceramics;

Attention: CxV soldering iron tip only applies toFandCSeries provided

This temperature is a reference temperature, the actual temperature is not that high, and the actual temperature shall prevail;
