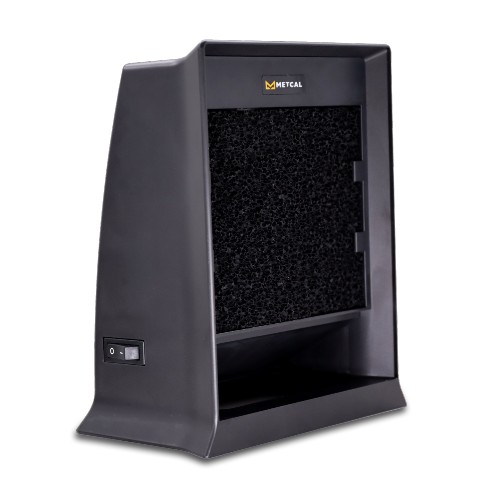

MSA-35L is a new smoke absorption product launched by MECAL brand in 2023.

Low noise of the product; Capable of absorbing and filtering various welding fumes;

Vertical and HorizontalTwo ways of absorption, providing flexible applications; stayEasy to replace filter consumables while ensuring safe use,
Still maintaining the Metcal smoke purification seriesAnti static electricitySecurity performance.

MSA-35L Product Features

Can provide 120V and 230V power configurations

Compact and compact in appearance, saving space

Specially designed for desktop smoke solutions

Both vertical and horizontal application methods are applicable simultaneously:
Vertical applications provide a larger smoke absorption area; 1.1 m³/min（38 cfm)
Horizontal application provides a more directional absorption path and higher flow rate; 0.5 m ³/min (18 cfm) side power on/off switch.

Product specifications

Features MSA-35L-22

power25 W

Vertical application suction ability0.9 m³/min (32 cfm)

Horizontal application absorption ability0.45 m³/min (16 cfm)

noise<-45 dBA – 51 dBA

Power frequency50 Hz

supply voltage220 VAC

Safety CompliancesizeH/W/D (mm)217 (H) x 186 (W) x 111 (D)

sizeH/W/D (inches)8.54” (H) x 7.32” (W) x 4.37” (D)

weight0.91 kg / 2.0 lbs.
