APD PCBA Appearance Inspection Machine
DESCRIPTION

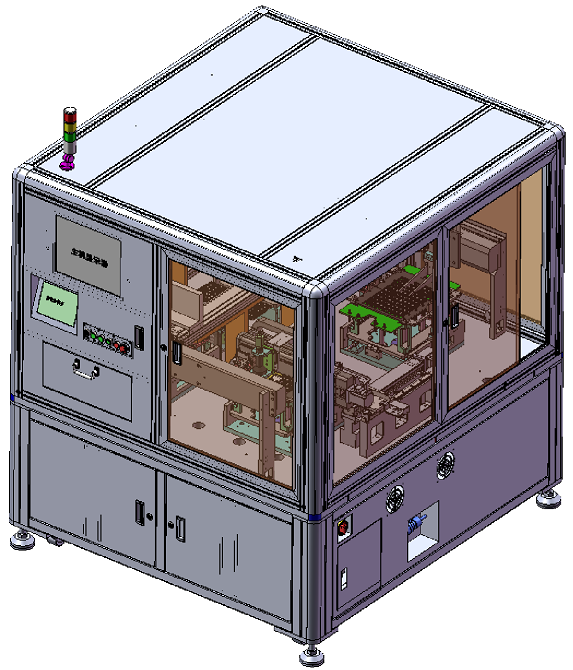

equipmentThe function is to detect PCBAAppearance defects, a total of the following defects were detected, including the front and back of the product【testingPCBAproductOn both sidesScratches, dents, dirt, and defectsWaiting for defects】.
It is divided into visual inspection system part, software part, data processing part, and non-standard customized mechanism and motion control part.
Visual parameter display
|
Visual inspection system part |
High definition industrial area array camera |
500W pixels, resolution: 2448 x 2048; Frame rate: 23 fps; Pixel size: 3.45x3.45 μ m; Interface: SUB3.0 |
|
High definition dual telecentric industrial lens |
Field of view size:28mm*24mm |
|
|
Industrial visual light source(Customized) |
Coaxial light |
|
|
Visual Light Source Controller |
controller |
Working environment: Temperature range of 10-30 degrees (22 ℃±)3℃ is optimal), humidity30-70% RH；
Electrical requirements for equipment:220VAC power supply, meeting2KW-3KWPower;
Equipment pressure requirements:0.5-0.7Mpa;
(If you need it, please feel free to contact us at any time!)
