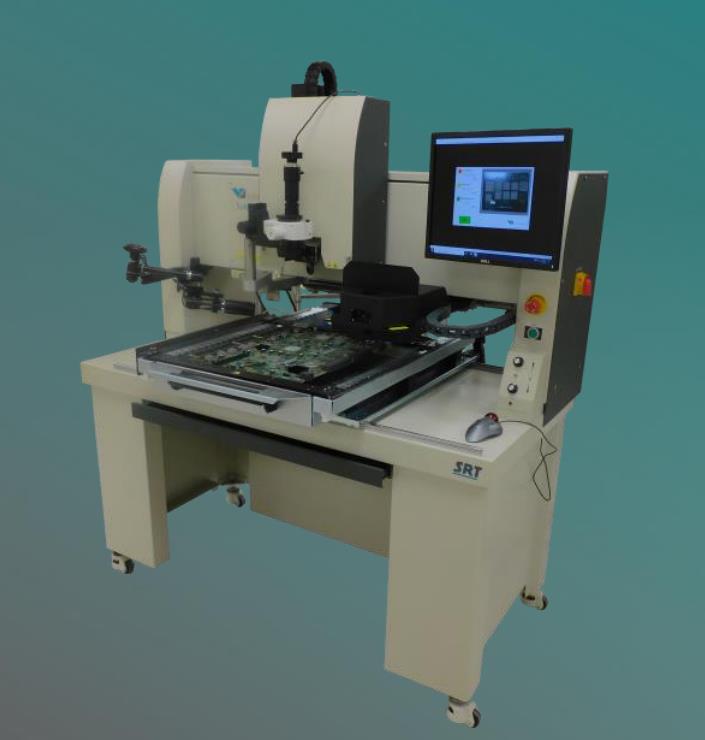

Summit 1800iIt is widely popularSummitThe latest products in the series.It inherits the excellent heating performance, high production capacity, and reliability of the series

Repeatability and providing superior performance and flexibility.The improved design of component placement provides miniature passive components and connectorsbetter
Repair performance. The Greatest Da80mmThe perspective, makingSummit 1800iCan meet the current and future repair needs for many years.

Technical features:

Easy to use automatic analysis software:

·User friendly and simple thermal curve development The default reflow curve of the standard rework process is ensured by advanced contour analysis software for contour development

·Successfully automatically reflow, delete, and replace contours created after developing automatic contours

Simple component to site alignment:

·Two toneLEDOptical alignment system can achieve easy to view component to station alignment

·Electric and programmableθThe axis minimizes operator intervention to the greatest extent possible

·Electric and programmableX-YWorkbench (optional) for fully automated rework

Repeatable thermal performance:

· Efficient convection heater provides high thermal uniformity

· Circuit board adjustment (preheating) can achieve accurate temperature measurement based on temperature through thermocouples

Automatic non-contact site cleaning:

·Dynamic height sensing （DHS）The cleaner can maintain a consistent gap between the cleaner tip and the circuit board, safely removing residual solder

·ProgrammableXTheYandZAxis, no need for operator intervention

·Nitrogen capacity, consistent results can be obtained without cleaning after removal

MESInterface:

·Track all operations performed on the rework system from automatic event logs

·Reflux process can be easily transferred between systems

Tools available for any surface mount component:

·Standard nozzle for traditional components

·Special nozzle for unique components

Technical parameters:

Mounting ability:0.0005“（12u）Mean value3σ

Maximum circuit board size:455 x 560mm（560 x 760mmOptional)

Minimum component size:01005

Maximum field of view:65mmSquare shape（80mmSquare optional)

Thermocouple socket:6（14Optional)

θSports:360°

Top heater:2.2kW
Area heater:4000W（7800WOptional)

On site heater (optional):1000W
